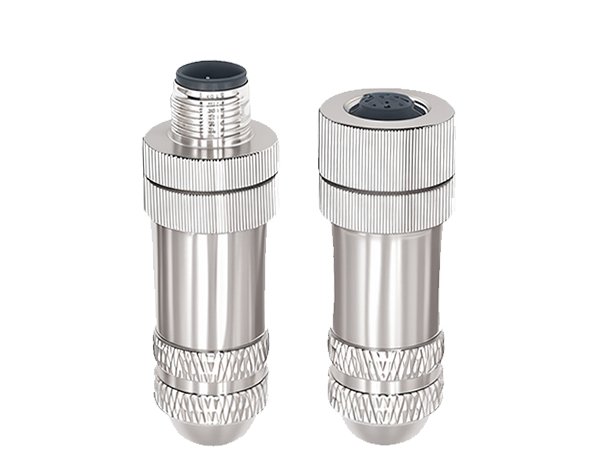

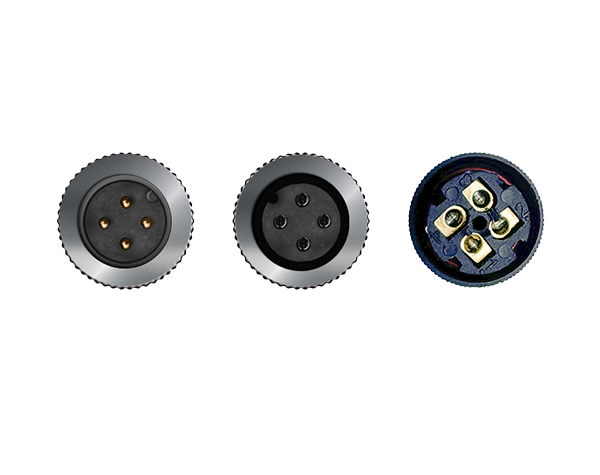

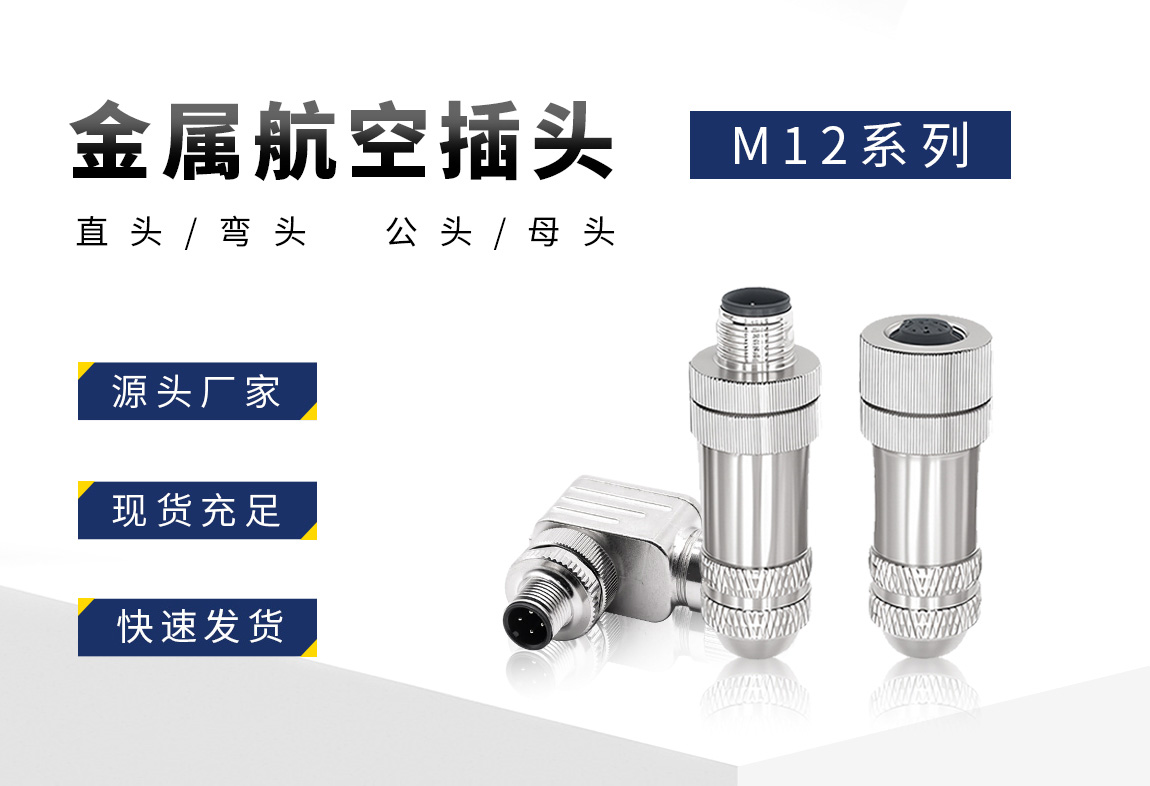

产品名称：M12金属航空插头
连接方式：螺钉压接
认证：CE

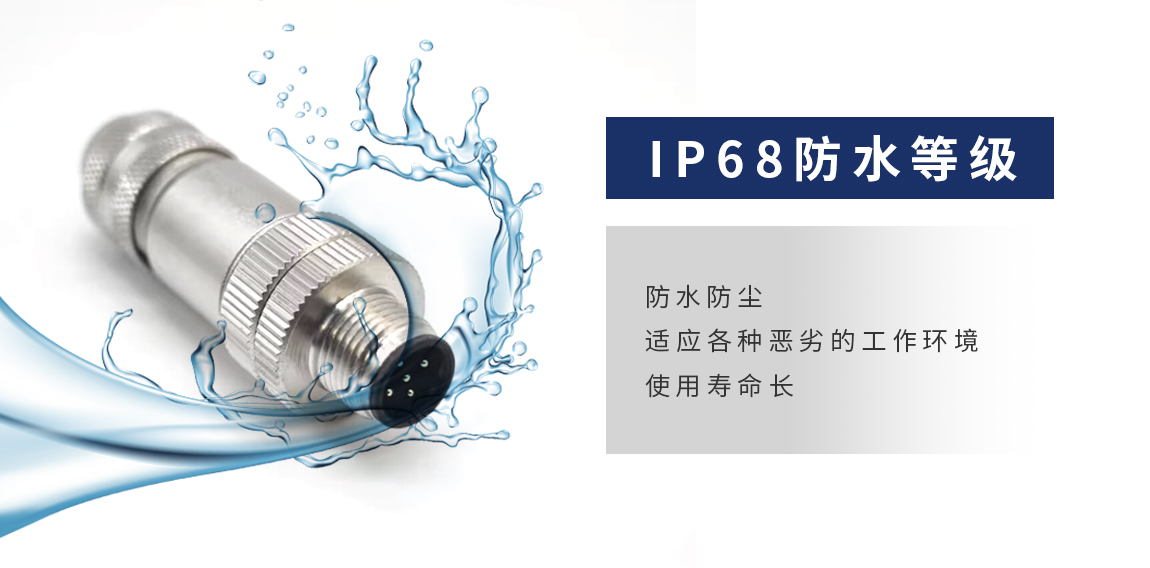

特点：防水防尘 导电性好
选择语言 < 返回菜单

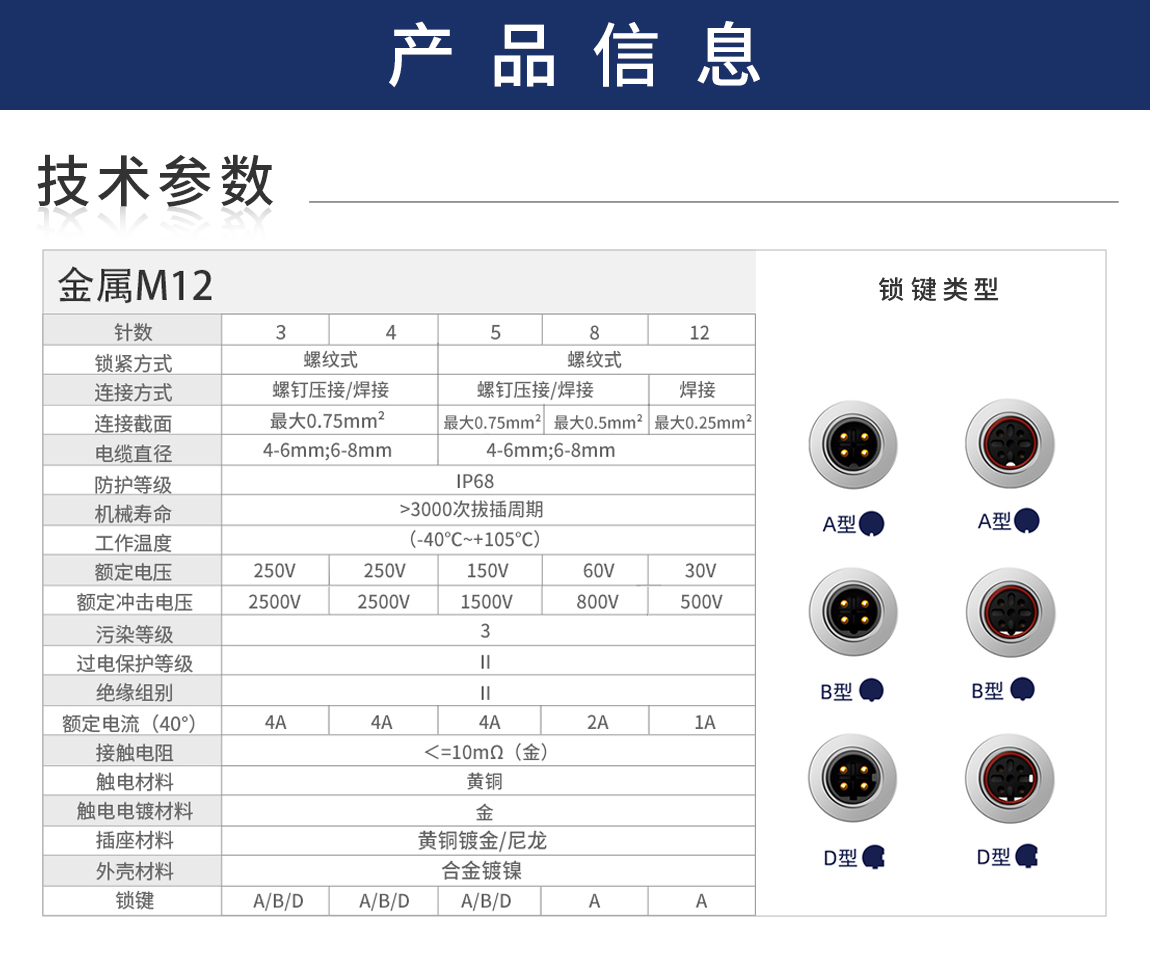

▇产品参数
| 型号 Type | M12金属屏蔽式-3芯直头 公 | M12金属屏蔽式-3芯直头 母 | M12金属屏蔽式-4芯直头 公 | M12金属屏蔽式-4芯直头 母 |
| 芯数 Pin | 3Pin | 4Pin | ||

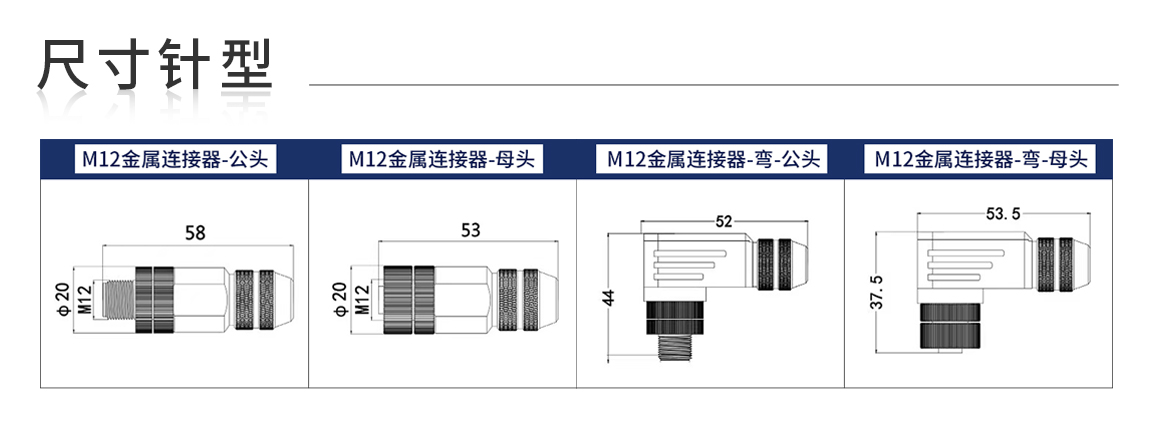

| 尺寸Size (mm) | 61*20 | 57*20 | 61*20 | 57*20 |

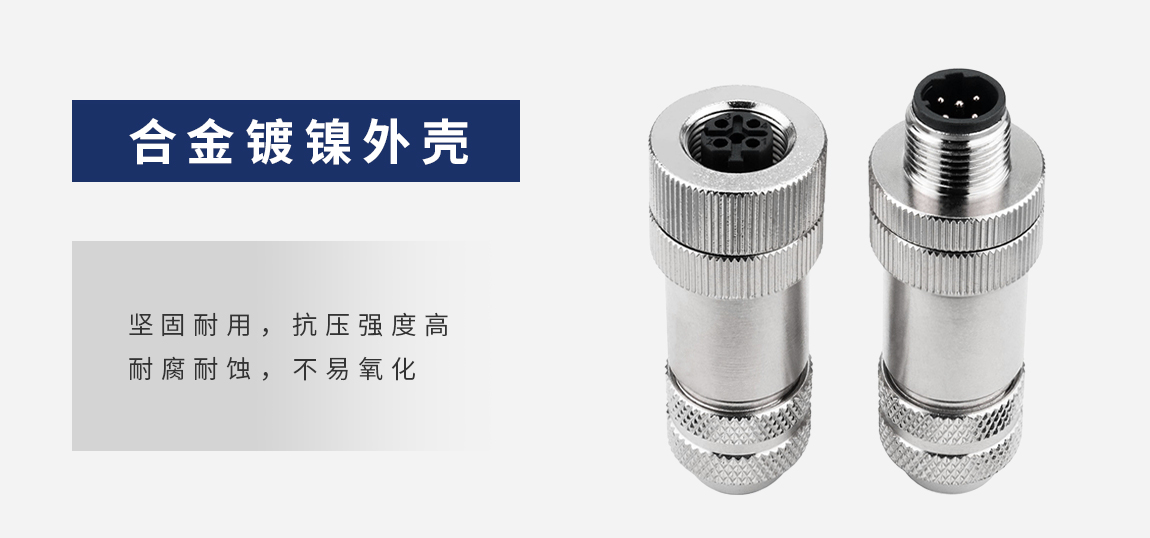

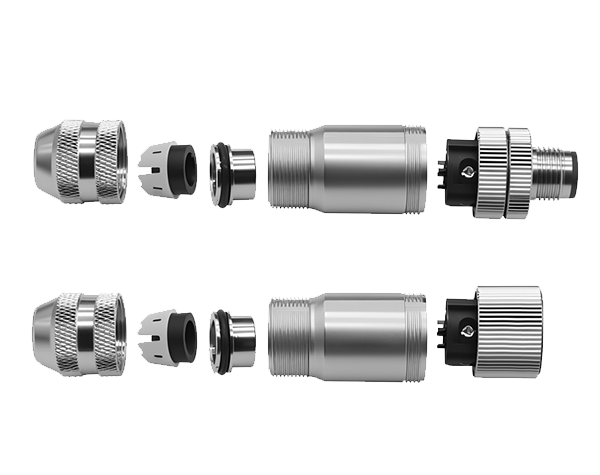

| 产品材质 Material | 外壳铸锌镀镍/黄铜镀镍 | 外壳铸锌镀镍/黄铜镀镍 | ||
| 胶芯尼龙PA6 | 胶芯尼龙PA6 | |||

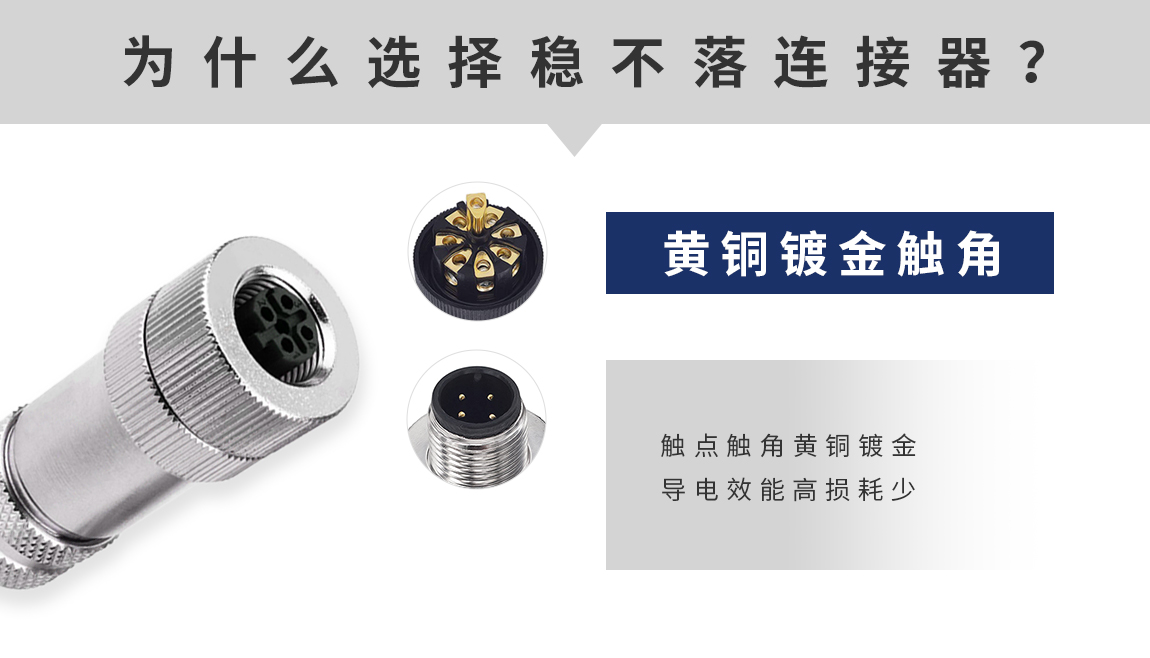

| 触电材料黄铜镀金 | 触电材料黄铜镀金 | |||
| 螺丝铜镀镍 | 螺丝铜镀镍 | |||
| 技术参数Technical data | ||||
| 额定电压 Rated voltage | 250V | 250V | ||
| 额定电流 Rated current | 4A | 4A | ||
| 脉冲高压 Impulse voltage | 2500V | 2500V | ||
| 绝缘电阻 Insulation resistance | >100MΩ | >100MΩ | ||
| 接触电阻 Contact resistance | ≤10mΩ | ≤10mΩ | ||
| 温度范围 Rated termperature | (动态):-25～85℃;(静态):-40～80℃ | (动态):-25～85℃;(静态):-40～80℃ | ||
| 安装适配 Installation | ||||
| 适配线规 Wire gauge | 最大0.75mm²(A.W.G.22) | 最大0.75mm²(A.W.G.22) | ||
| 适配线径 Cable outlet | 4-6;6-8mm | 4-6;6-8mm | ||
| 锁键方式 Locking system | A/B/D型 | A/B/D型 | ||
| 螺丝扭矩 Tightening torque | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | ||
| 接线方式 Termination | 螺钉压接 | 螺钉压接 | ||
| 环境合规性 Environmental compliance | ||||
| 参照标准 Reference standard | EC61076-2-104 | EC61076-2-104 | ||
| 防护等级 Protection degree | IP67 | IP67 | ||
| 污染等级 Polution degree | 3 | 3 | ||
| 干扰屏蔽 BMC Shielding | Non-Shielded | Non-Shielded | ||
| 型号 Type | M12金属屏蔽式-5芯直头 公 | M12金属屏蔽式-5芯直头 母 | M12金属屏蔽式-8芯直头 公 | M12金属屏蔽式-8芯直头 母 |
| 芯数 Pin | 5Pin | 8Pin | ||
| 尺寸Size (mm) | 61*20 | 57*20 | 61*20 | 57*20 |
| 产品材质 Material | 外壳铸锌镀镍/黄铜镀镍 | 外壳铸锌镀镍/黄铜镀镍 | ||
| 胶芯尼龙PA6 | 胶芯尼龙PA6 | |||
| 触电材料黄铜镀金 | 触电材料黄铜镀金 | |||
| 螺丝铜镀镍 | 螺丝铜镀镍 | |||
| 技术参数Technical data | ||||
| 额定电压 Rated voltage | 150V | 60V | ||
| 额定电流 Rated current | 4A | 2A | ||
| 脉冲高压 Impulse voltage | 1500V | 800V | ||
| 绝缘电阻 Insulation resistance | >100MΩ | >100MΩ | ||
| 接触电阻 Contact resistance | ≤10mΩ | ≤10mΩ | ||
| 温度范围 Rated termperature | (动态):-25～85℃;(静态):-40～80℃ | (动态):-25～85℃;(静态):-40～80℃ | ||
| 安装适配 Installation | ||||
| 适配线规 Wire gauge | 最大0.75mm²(A.W.G.22) | 最大0.5mm²(A.W.G.24) | ||
| 适配线径 Cable outlet | 4-6;6-8mm | 4-6;6-8mm | ||
| 锁键方式 Locking system | A/B/D型 | A/B/D型 | ||
| 螺丝扭矩 Tightening torque | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | ||
| 接线方式 Termination | 螺钉压接 | 螺钉压接 | ||
| 环境合规性 Environmental compliance | ||||
| 参照标准 Reference standard | EC61076-2-104 | EC61076-2-104 | ||
| 防护等级 Protection degree | IP67 | IP67 | ||
| 污染等级 Polution degree | 3 | 3 | ||
| 干扰屏蔽 BMC Shielding | Non-Shielded | Non-Shielded | ||

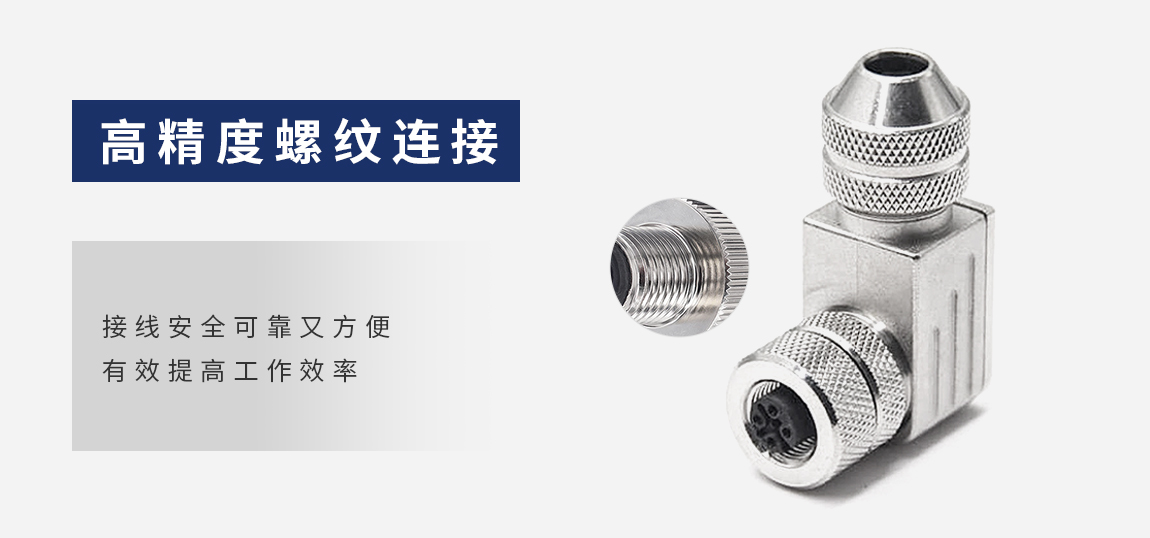

| 型号 Type | M12金属屏蔽式-12芯直头 公 | M12金属屏蔽式-12芯直头 母 | M12金属屏蔽式-3芯弯头 公 | M12金属屏蔽式-3芯弯头 母 |
| 芯数 Pin | 12Pin | 3Pin | ||
| 尺寸Size (mm) | 61*20 | 57*20 | 42.6*51.3(锁键端20) | 38*51.3(锁键端20) |
| 产品材质 Material | 外壳铸锌镀镍/黄铜镀镍 | 外壳铸锌镀镍/黄铜镀镍 | ||
| 胶芯尼龙PA6 | 胶芯尼龙PA6 | |||
| 触电材料黄铜镀金 | 触电材料黄铜镀金 | |||
| 螺丝铜镀镍 | 螺丝铜镀镍 | |||
| 技术参数Technical data | ||||
| 额定电压 Rated voltage | 30V | 250V | ||
| 额定电流 Rated current | 1A | 4A | ||
| 脉冲高压 Impulse voltage | 500V | 2500V | ||
| 绝缘电阻 Insulation resistance | >100MΩ | >100MΩ | ||
| 接触电阻 Contact resistance | ≤10mΩ | ≤10mΩ | ||
| 温度范围 Rated termperature | (动态):-25～85℃;(静态):-40～80℃ | (动态):-25～85℃;(静态):-40～80℃ | ||
| 安装适配 Installation | ||||
| 适配线规 Wire gauge | 最大0.25mm²(A.W.G.24) | 最大0.75mm²(A.W.G.22) | ||
| 适配线径 Cable outlet | 4-6;6-8mm | 4-6;6-8mm | ||
| 锁键方式 Locking system | A/B/D型 | A/B/D型 | ||
| 螺丝扭矩 Tightening torque | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | ||
| 接线方式 Termination | 螺钉压接 | 螺钉压接 | ||
| 环境合规性 Environmental compliance | ||||
| 参照标准 Reference standard | EC61076-2-104 | EC61076-2-104 | ||
| 防护等级 Protection degree | IP67 | IP67 | ||
| 污染等级 Polution degree | 3 | 3 | ||
| 干扰屏蔽 BMC Shielding | Non-Shielded | Non-Shielded | ||
| 型号 Type | M12金属屏蔽式-4芯弯头 公 | M12金属屏蔽式-4芯弯头 母 | M12金属屏蔽式-5芯弯头 公 | M12金属屏蔽式-5芯弯头 母 |
| 芯数 Pin | 4Pin | 5Pin | ||
| 尺寸Size (mm) | 42.6*51.3(锁键端20) | 38*51.3(锁键端20) | 42.6*51.3(锁键端20) | 38*51.3(锁键端20) |
| 产品材质 Material | 外壳铸锌镀镍/黄铜镀镍 | 外壳铸锌镀镍/黄铜镀镍 | ||
| 胶芯尼龙PA6 | 胶芯尼龙PA6 | |||
| 触电材料黄铜镀金 | 触电材料黄铜镀金 | |||
| 螺丝铜镀镍 | 螺丝铜镀镍 | |||
| 技术参数Technical data | ||||
| 额定电压 Rated voltage | 250V | 150V | ||
| 额定电流 Rated current | 4A | 4A | ||
| 脉冲高压 Impulse voltage | 2500V | 1500V | ||
| 绝缘电阻 Insulation resistance | >100MΩ | >100MΩ | ||
| 接触电阻 Contact resistance | ≤10mΩ | ≤10mΩ | ||
| 温度范围 Rated termperature | (动态):-25～85℃;(静态):-40～80℃ | (动态):-25～85℃;(静态):-40～80℃ | ||
| 安装适配 Installation | ||||
| 适配线规 Wire gauge | 最大0.75mm²(A.W.G.22) | 最大0.75mm²(A.W.G.22) | ||
| 适配线径 Cable outlet | 4-6;6-8mm | 4-6;6-8mm | ||
| 锁键方式 Locking system | A/B/D型 | A/B/D型 | ||
| 螺丝扭矩 Tightening torque | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | ||
| 接线方式 Termination | 螺钉压接 | 螺钉压接 | ||
| 环境合规性 Environmental compliance | ||||
| 参照标准 Reference standard | EC61076-2-104 | EC61076-2-104 | ||
| 防护等级 Protection degree | IP67 | IP67 | ||
| 污染等级 Polution degree | 3 | 3 | ||
| 干扰屏蔽 BMC Shielding | Non-Shielded | Non-Shielded | ||
| 型号 Type | M12金属屏蔽式-8芯弯头 公 | M12金属屏蔽式-8芯弯头 母 | M12金属屏蔽式-12芯弯头 公 | M12金属屏蔽式-12芯弯头 母 |
| 芯数 Pin | 8Pin | 12Pin | ||
| 尺寸Size (mm) | 42.6*51.3(锁键端20) | 38*51.3(锁键端20) | 42.6*51.3(锁键端20) | 38*51.3(锁键端20) |
| 产品材质 Material | 外壳铸锌镀镍/黄铜镀镍 | 外壳铸锌镀镍/黄铜镀镍 | ||
| 胶芯尼龙PA6 | 胶芯尼龙PA6 | |||
| 触电材料黄铜镀金 | 触电材料黄铜镀金 | |||
| 螺丝铜镀镍 | 螺丝铜镀镍 | |||
| 技术参数Technical data | ||||
| 额定电压 Rated voltage | 60V | 30V | ||
| 额定电流 Rated current | 2A | 1A | ||
| 脉冲高压 Impulse voltage | 800V | 500V | ||
| 绝缘电阻 Insulation resistance | >100MΩ | >100MΩ | ||
| 接触电阻 Contact resistance | ≤10mΩ | ≤10mΩ | ||
| 温度范围 Rated termperature | (动态):-25～85℃;(静态):-40～80℃ | (动态):-25～85℃;(静态):-40～80℃ | ||
| 安装适配 Installation | ||||
| 适配线规 Wire gauge | 最大0.5mm²(A.W.G.24) | 最大0.25mm²(A.W.G.24) | ||
| 适配线径 Cable outlet | 4-6;6-8mm | 4-6;6-8mm | ||
| 锁键方式 Locking system | A/B/D型 | A/B/D型 | ||
| 螺丝扭矩 Tightening torque | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | (建议):0.2Nm,Max(最大):0.4Nm,(接线螺丝):0.1Nm,(尾卡螺母):0.3~0.8Nm | ||
| 接线方式 Termination | 螺钉压接 | 螺钉压接 | ||
| 环境合规性 Environmental compliance | ||||
| 参照标准 Reference standard | EC61076-2-104 | EC61076-2-104 | ||
| 防护等级 Protection degree | IP67 | IP67 | ||
| 污染等级 Polution degree | 3 | 3 | ||
| 干扰屏蔽 BMC Shielding | Non-Shielded | Non-Shielded | ||
▇认证证书

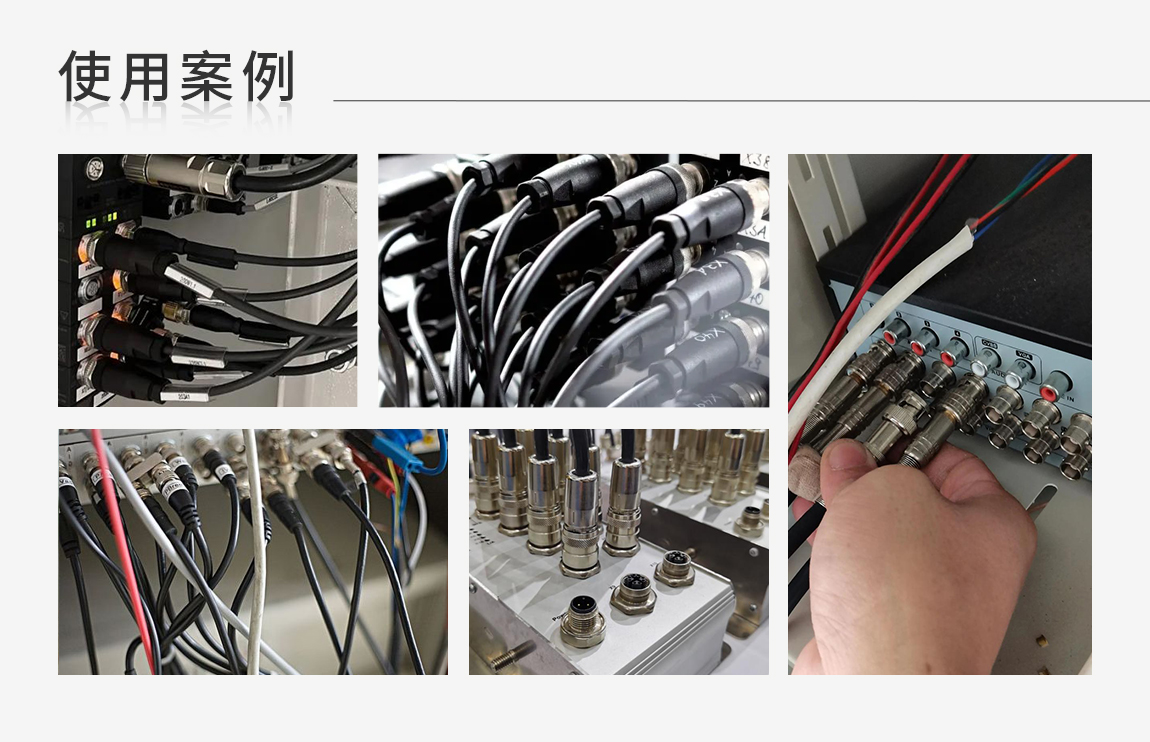

▇头部客户案例
|
|
|
|
