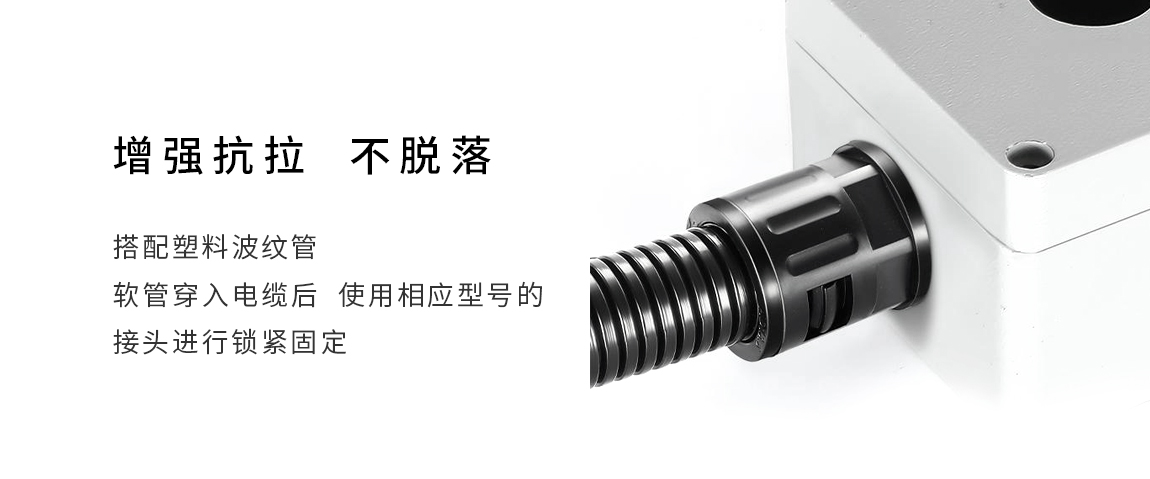

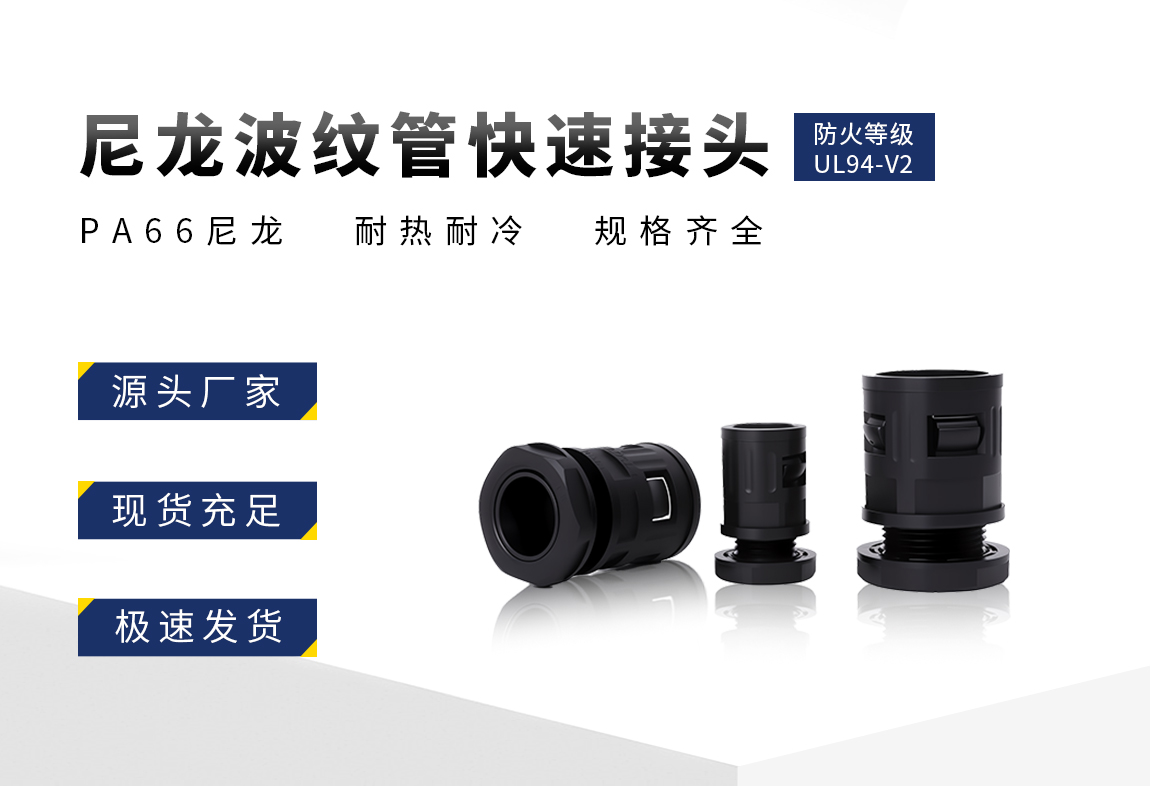

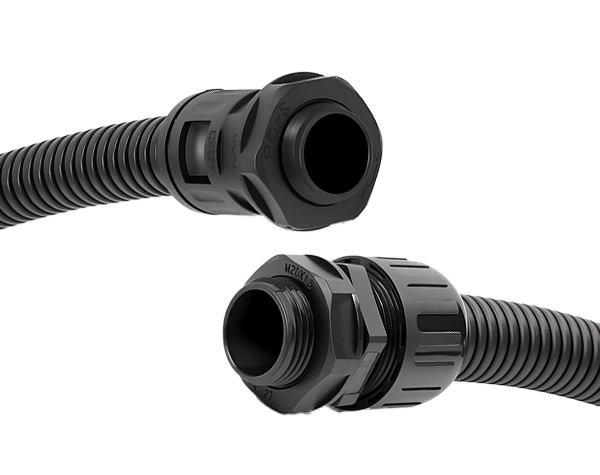

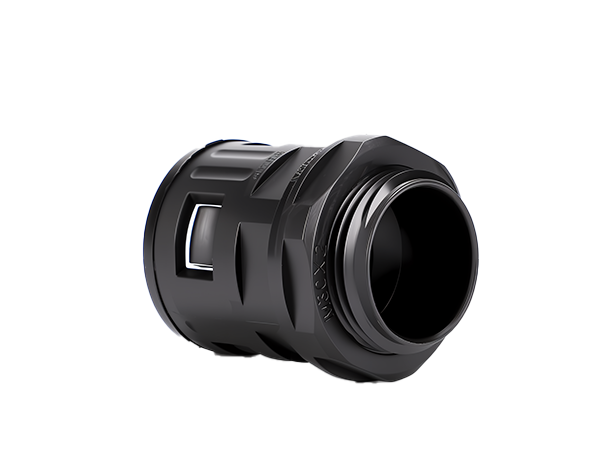

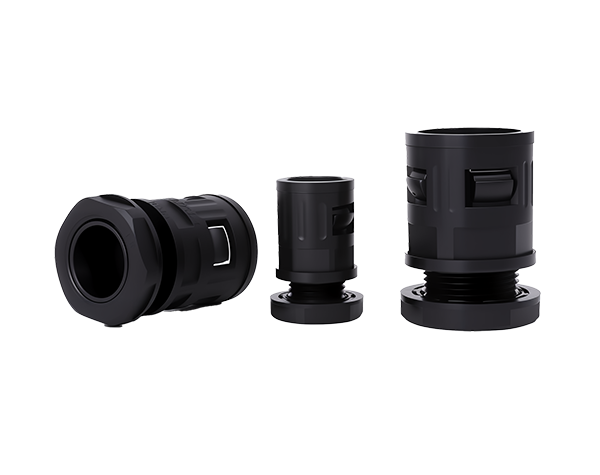

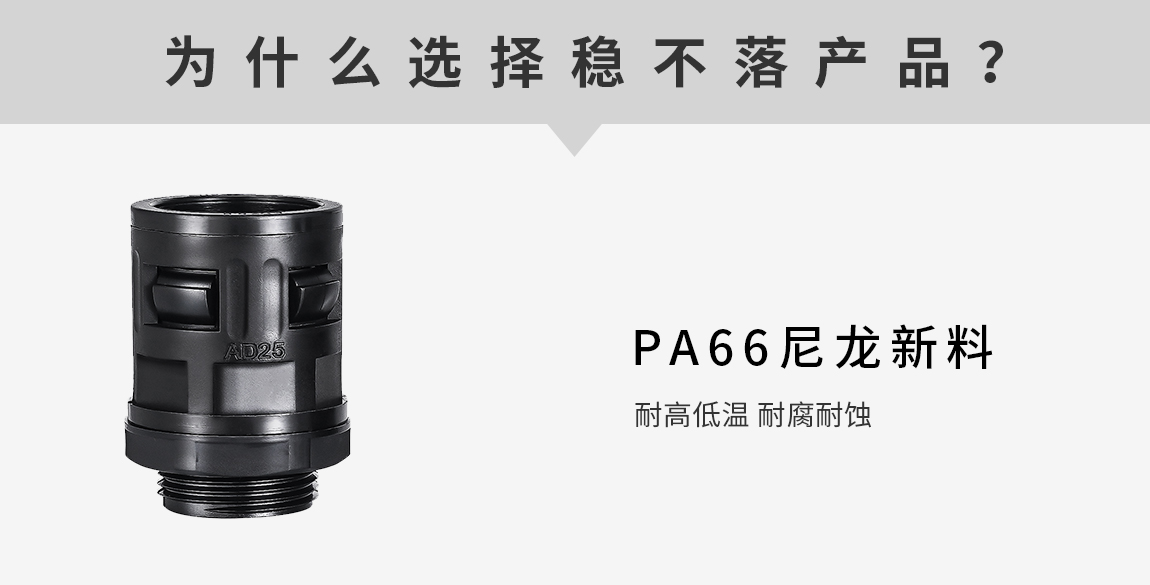

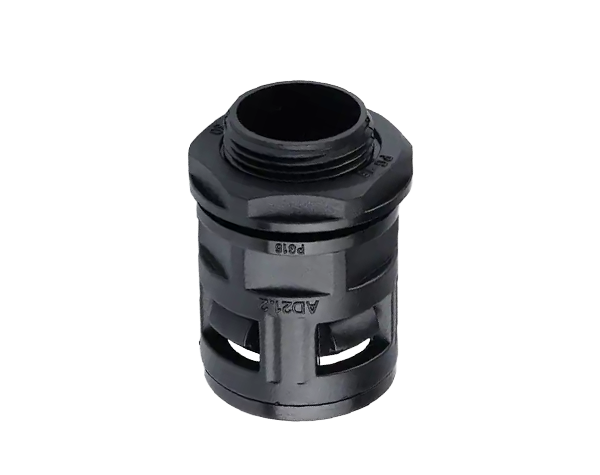

产品名称：尼龙快速接头
特点：耐热耐冷 规格齐全
是否寄样：可寄样
库存：现货充足
选择语言 < 返回菜单

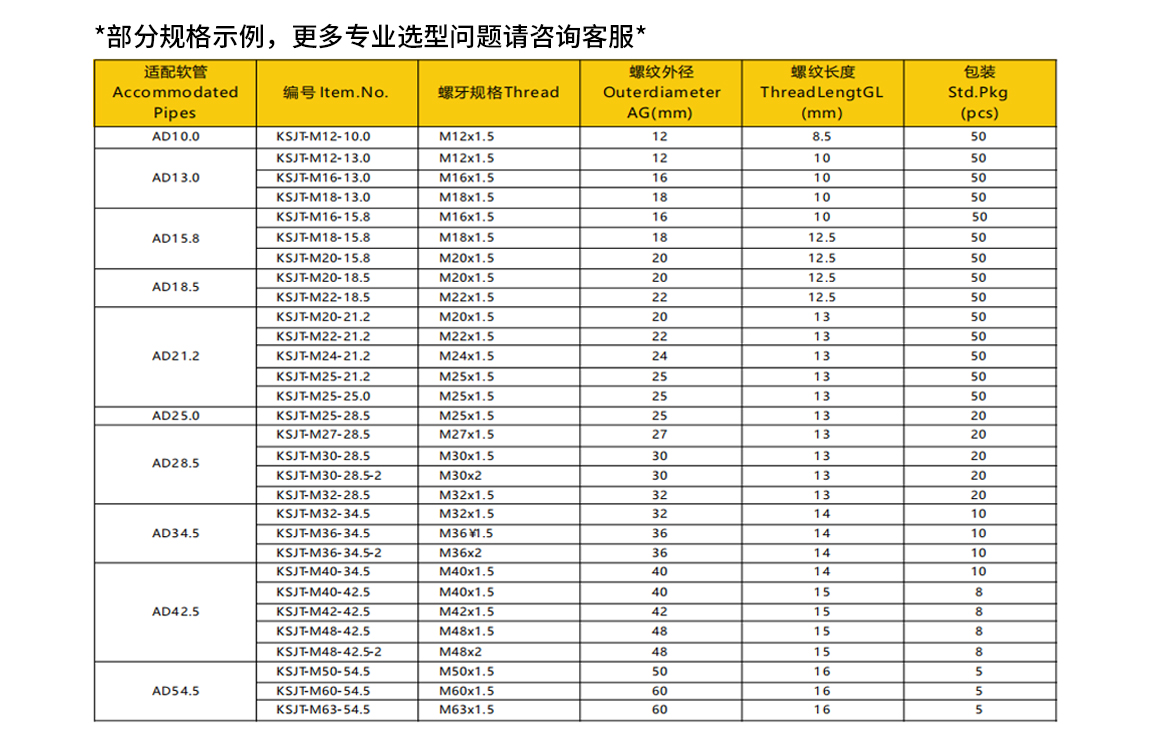

▇产品参数

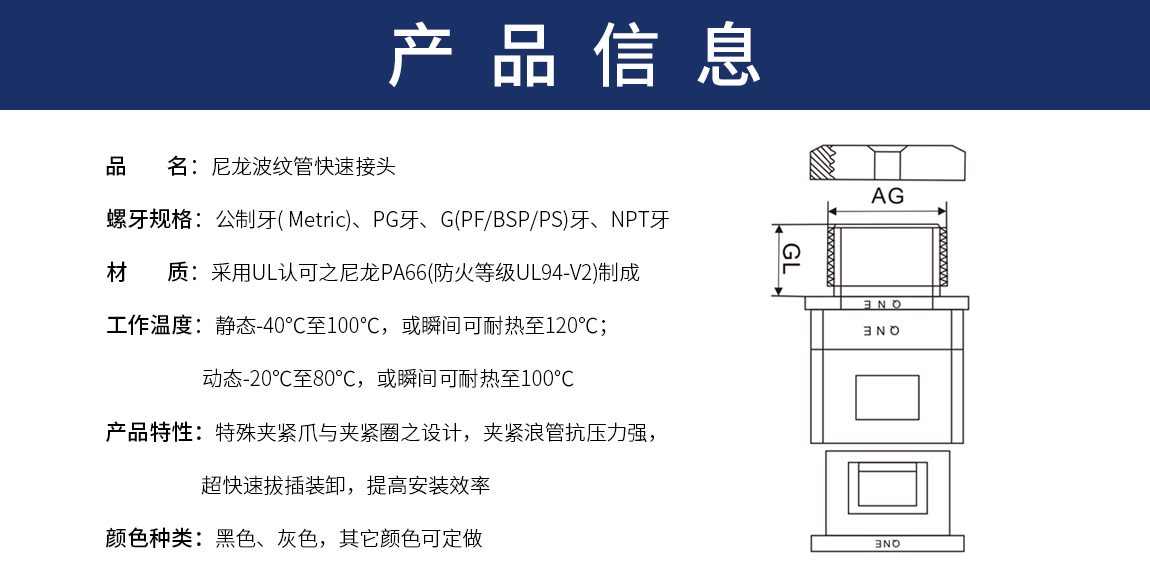

| 适配软管 Accom modated Pipes | 编号Item.No. | 螺牙规格Thread | 螺纹外径 Outer diameter AG(mm) | 螺纹长度 Thread Lengt GL (mm) | 包装 Std.Pkg (pcs) |
| AD10.0 | KSJT-M12-10.0 | M12x1.5 | 12 | 8.5 | 50 |
| AD13.0 | KSJT-M12-13.0 | M12x1.5 | 12 | 10 | 50 |
| KSJT-M16-13.0 | M16x1.5 | 16 | 10 | 50 | |
| KSJT-M18-13.0 | M18x1.5 | 18 | 10 | 50 | |
| AD15.8 | KSJT-M16-15.8 | M16x1.5 | 16 | 10 | 50 |
| KSJT-M18-15.8 | M18x1.5 | 18 | 12.5 | 50 | |
| KSJT-M20-15.8 | M20x1.5 | 20 | 12.5 | 50 | |
| AD18.5 | KSJT-M20-18.5 | M20x1.5 | 20 | 12.5 | 50 |
| KSJT-M22-18.5 | M22x1.5 | 22 | 12.5 | 50 | |
| AD21.2 | KSJT-M20-21.2 | M20x1.5 | 20 | 13 | 50 |
| KSJT-M22-21.2 | M22x1.5 | 22 | 13 | 50 | |
| KSJT-M24-21.2 | M24x1.5 | 24 | 13 | 50 | |
| KSJT-M25-21.2 | M25x1.5 | 25 | 13 | 50 | |
| KSJT-M25-25.0 | M25x1.5 | 25 | 13 | 50 | |
| AD25.0 | KSJT-M25-28.5 | M25x1.5 | 25 | 13 | 20 |
| AD28.5 | KSJT-M27-28.5 | M27x1.5 | 27 | 13 | 20 |
| KSJT-M30-28.5 | M30x1.5 | 30 | 13 | 20 | |
| KSJT-M30-28.5-2 | M30x2 | 30 | 13 | 20 | |
| KSJT-M32-28.5 | M32x1.5 | 32 | 13 | 20 | |
| AD34.5 | KSJT-M32-34.5 | M32x1.5 | 32 | 14 | 10 |
| KSJT-M36-34.5 | M36x1.5 | 36 | 14 | 10 | |
| KSJT-M36-34.5-2 | M36x2 | 36 | 14 | 10 | |
| AD42.5 | KSJT-M40-34.5 | M40x1.5 | 40 | 14 | 10 |
| KSJT-M40-42.5 | M40x1.5 | 40 | 15 | 8 | |
| KSJT-M42-42.5 | M42x1.5 | 42 | 15 | 8 | |
| KSJT-M48-42.5 | M48x1.5 | 48 | 15 | 8 | |
| KSJT-M48-42.5-2 | M48×2 | 48 | 15 | 8 | |
| AD54.5 | KSJT-M50-54.5 | M50x1.5 | 50 | 16 | 5 |
| KSJT-M60-54.5 | M60x1.5 | 60 | 16 | 5 | |
| KSJT-M63-54.5 | M63x1.5 | 60 | 16 | 5 |
